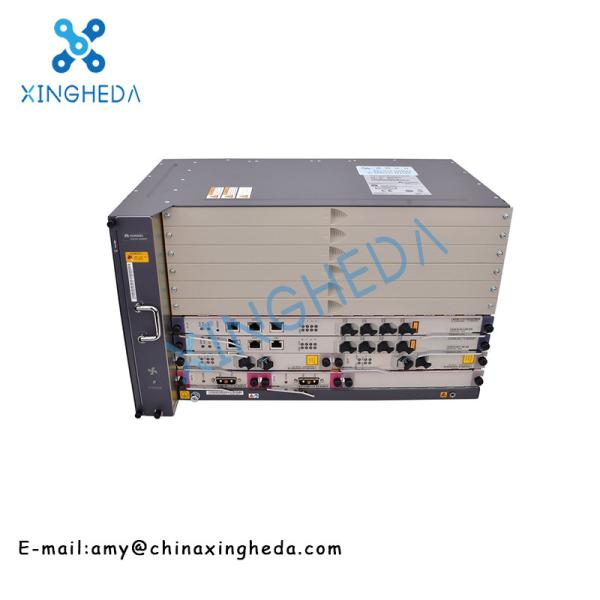

Huawei MA5683 OLT MA5683T With X2CS GPBH GPFD GPBD 10GE GPON OLT

Main Configurations:

-2*PRTE Power Card

-2*SCUN Control Card

-2*GICF Uplink Card or 2*X2CS 10ge

-2*Power cables

Service board for your option:

GPBD: 8ports Gpon B+ C+ C++

GPHD: 8ports Gpon B+ C+ C++

EPSD: 8ports Epon

GPFD: 16ports Gpon B+ C+ C++

EPFD: 16ports Epon

XEBD: 10G 8ports Epon

XGBD: 10G 8ports Gpon

Huawei Ma5683t olt Production Description:

• Aggregate Access:
• Ultra-high convergence switching capacity, 3.2T backplane capacity, 1920G switching capacity, 512G MAC address capacity;
• Ultra-high-density cascade capability, maximum support for 44-channel 10GE or 768 GE access, no additional investment aggregation switch.
• High Reliability:
• Highly reliable networking capabilities, support OLT dual hot backup, off-site capacity,upgrade business is not interrupted
• Complete QoS function, support traffic classification management, priority control, with paragraph control. H-QoS functions to meet SLA requirements for diverse business customers.
• End-to end high reliability design, uplink support BFD/Smart Link/LACP redundancy protection, support EPON TypeB / TypeD and GPON TypeB / TypeC line protection.
• Multi-scene access:
• A variety of E1 line access, support Native TDM or CESoP / SAToP function.
• Support E-LAN function to achieve internal traffic flow based on VLAN to meet the enterprise and campus network applications.
• Support IPTV users without convergence access, single-frame support 8000 multicast users and 4000 multicast channels.
• Smooth Evolution:
• EPON / GPON / 10G PON / 40G PON common platform to support smooth evolution, to meet the ultra-wideband access.
• Support IPv4 / IPv6 dual stack, support IPv6 multicast, to achieve the smooth evolution of IPv4 to IPv6.
• Green Technology:
• Unique chip technology, high-density 16 port GPON board power consumption does not exceed 73W.
• Support free board automatic power, fan intelligent speed, effectively reduce the idle power consumption.

Product Details:

If you are interested, please let us know the specific model. We will provide the best service and the best price!
