HUAWEI OSN3500 Huawei MSTP/SDH OSN 3500 Optical transmission equipment
Product Description:
The OptiX OSN 3500 intelligent optical transmission system (the OptiX OSN 3500 for short) developed by Huawei is the next-generation intelligent optical transmission equipment.
The OptiX OSN 3500 is of a "universal switch" architecture. That is, the OptiX OSN 3500 can be used in packet mode or in TDM mode. When used with the other equipment of Huawei, the OptiX OSN 3500 supports various networking applications, such as the pure packet mode application, hybrid networking application (overlay networking of the packet mode and TDM mode), and pure TDM mode application. By using a proper networking solution, the data service and conventional
| Specifications | OSN 3500 |
| Dimensions | 722 mm (H) x 497 mm (W) x 295 mm (D) |
| Switch Capacity | Packet: 100 Gbit/s and TDM: 200 Gbit/s (higher order), 20 Gbit/s (lower order) |
| Service Slots | 15 slots for processing boards and 16 slots for interface boards |
| Supported Interface | Ethernet interface | FE/GE/10GE |
| SDH interface | STM-1/4/16/64 |
| PDH interface | E1/E3/E4/T1/T3 |
| ATM interface | E1, STM1 |
| WDM interface | 40-channel DWDM interfaces, compliant with ITU-T G.694.1 8-channel CWDM interfaces, compliant with ITU-T G.694.2 |
| Other interface | DDN, SAN, Video, PCM |
| Networking Mode | •• Supporting pure packet, hybrid (packet + SDH) or SDH networking •• Supporting WDM networking •• Supporting single-fiber bidirectional transmission |
Product Features:
The OptiX OSN 3500 transmits voice and data services on the same platform with high efficiency. It integrates the following technologies:
In packet mode, the OptiX OSN 3500 supports the following technologies:
1.Multiprotocol Label Switching (MPLS)
2.Multiprotocol Label Switching Transport Profile (MPLS-TP)
3.Pseudo Wire Edge to Edge Emulation (ETH PWE3)
4.TDM PWE3
5.ATM PWE3
In TDM mode, the OptiX OSN 3500 supports the following technologies:
1.Synchronous digital hierarchy (SDH)
2.Plesiochronous digital hierarchy (PDH)
3.Ethernet
4.Asynchronous transfer mode (ATM)
5.Storage area network (SAN)/Video
6.Wavelength division multiplexing (WDM)
7.Digital data network (DDN)
8.Pulse Code Modulation (PCM)
Pr
Product Tags:
|
|

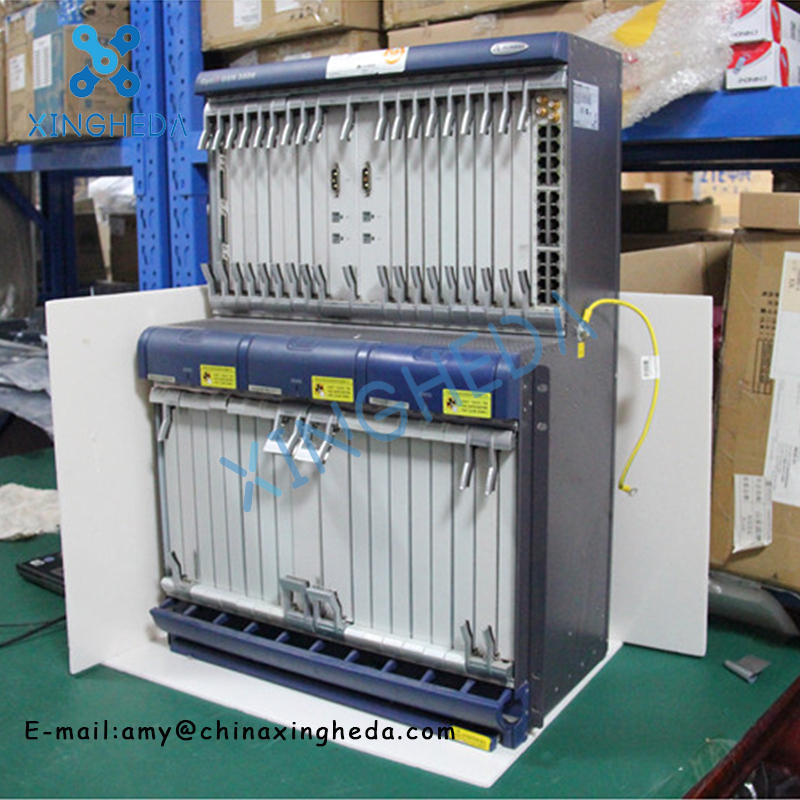

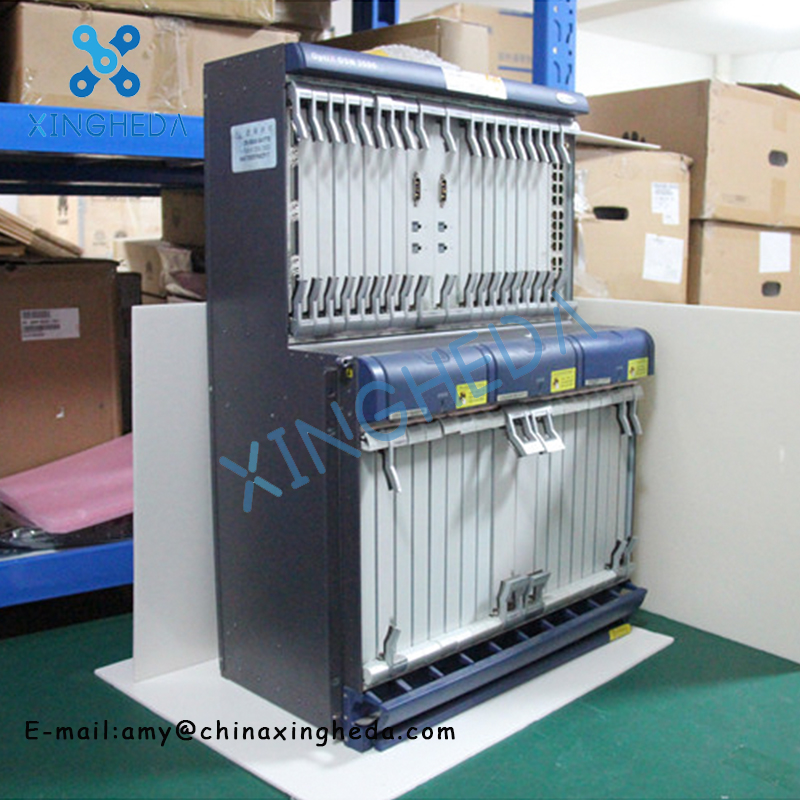

HUAWEI OSN3500 Huawei MSTP/SDH OSN 3500 Optical Transmission Equipment Images
|
