HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack

Name: HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack
Brand: HUAWEI
Price: 1 USD

China HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack wholesale

Brand Name : HUAWEI

Model Number : Huawei 8800 UPS

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : Huawei OSN8800 UPS

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack

Product Description:

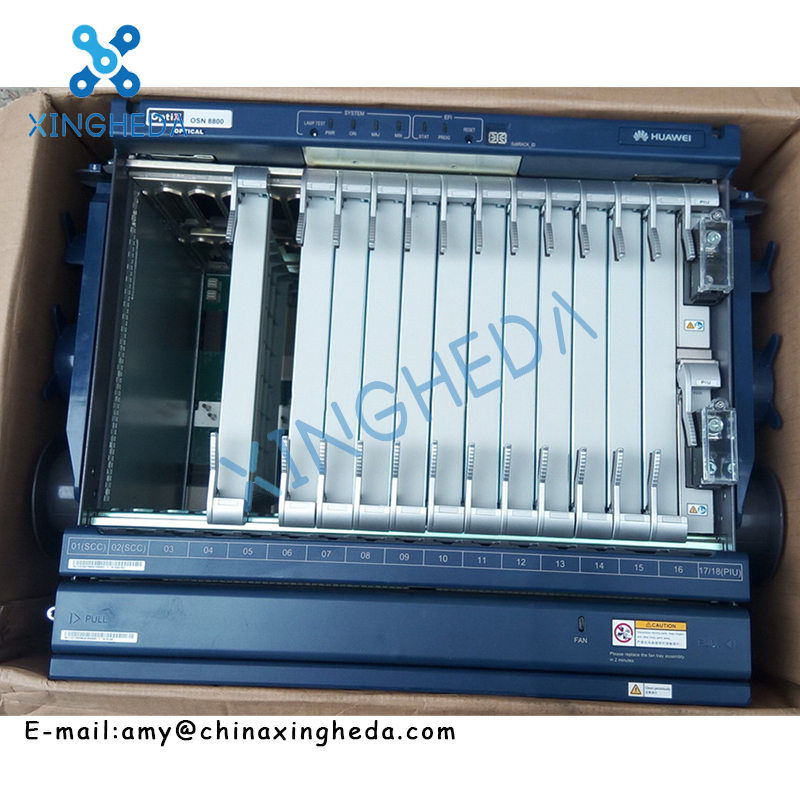

The OptiX OSN 8800 universal platform subrack can be installed in an N63B, N66B, or 19-inch cabinet. The subrack has 16 service slots.

Subracks are the basic working units of the OptiX OSN 8800 universal platform subrack. The OptiX OSN 8800 universal platform subrack can operate with an independent DC or AC power supply. A universal platform subrack supports two mounting options: ETSI cabinet mounting and 19-inch rack mounting.

Specifications:

OptiX OSN 8800 UPS	Specifications
Dimensions (mm)	442 (W) x 295 (D) x 397 (H)
Number of slots for service boards	16
Optical Switch	1 to 20-degree ROADM
Wavelength (max)	DWDM: 96-ch
Center wavelength range	DWDM: 1529.16 nm to 1567.13 nm (extended C-band, ITU-T G.694.1)
Max. rate per channel	200 Gbit/s (OTUC2)
Service types supported	SDH, SONET, Ethernet, SAN, OTN, Video
Line rate	2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 200 Gbit/s
Supported pluggable optical modules	eSFP, SFP+, XFP, CFP
Topology	Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, mesh
Network level protection (OTN)	Optical line protection, intra-board 1+1 protection, client 1+1 protection, SW SNCP, OWSP
Equipment level protection	Power redundancy, fan redundancy, system control and communication board redundancy
Optical power management	ALS, AGC, ALC, APE, IPA, OPA
Synchronization	Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD)
ASON	An OTN network supports the Optical-Layer ASON
Submarine Features	Supports application of extended C band in submarine scenarios.
Nominal working voltage	-48 V DC/-60 V DC
Operation environment	Subrack temperature: Long-term operation: 5°C (41 °F) to 45°C (113 °F) Short-term operation: -5°C (23 °F) to 55°C (131 °F) Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 95%

Product Details:
HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack

HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI OptiX OSN 8800 UPS HUAWEI DWDM OSN 8800 UPS Universal Platform Subrack
