Huawei MPSC H901MPSC 03023WDY MA5800T X2 4-Port 10GE Main Control Board

Name: Huawei MPSC H901MPSC 03023WDY MA5800T X2 4Port 10GE Main Control Board
Brand: HUAWEI
Price: 1 USD

China Huawei MPSC H901MPSC 03023WDY MA5800T X2 4-Port 10GE Main Control Board wholesale

Brand Name : HUAWEI

Model Number : Huawei H901MPSC

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : Huawei H901MPSC

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

Huawei MPSC H901MPSC 03023WDY MA5800T X2 4-port 10GE main control board

Product Description:

H901MPSC is the main control unit board, and the core of system control and service exchange convergence, and can also be used as the management and control core of the unified network management. H901MPSC transfers key management and control information through the master-slave serial port, in-band channel and business board to complete the configuration, management and control of the entire product, while achieving simple routing protocols and other functions.Support load sharing at the forwarding level.Maintain serial port CON and environmental monitoring serial port ESC share an interface, support local maintenance and environmental monitoring access.Provide maintenance network port ETH, support local and remote maintenance.

Product Specifications:

brand	HUAWEI
Model	MPSC
Bandwidth per slot	80Gbit/s (load sharing mode)
MAC address table	262143
Access ONT	4096
Multicast user	4000
IPv4 routing table	65536
IPv6 routing table	16384
Service port	32768
ARP table	98816 (V100R017C10 version)
ARP table	131072 (V100R018C00 and later version)
Maximum Frame Size	2052 bytes
Maximum Frame Size	9216 bytes (jumbo frame enabled)
Operating temperature	-40°C to +65°C
Power consumption	Static: 53W
Power consumption	Maximum: 67W
Dimensions(mm)	35.28 (W)x 258.15 (D) x 130.36 (H)
Weight(kg)	0.99

Product Feature:

Huawei MPSC Board is a super control unit board for optical access

MPSC Board is the core for system control and service switching and aggregation and is used for MA5800-X2 subracks
Supports active/standby switchover at the control plane
Supports load sharing mode at the forwarding plane, doubling processing performance
Supports ISSU, saving the upgrade interruption time
Supports synchronization Ethernet
Supports 1588v2

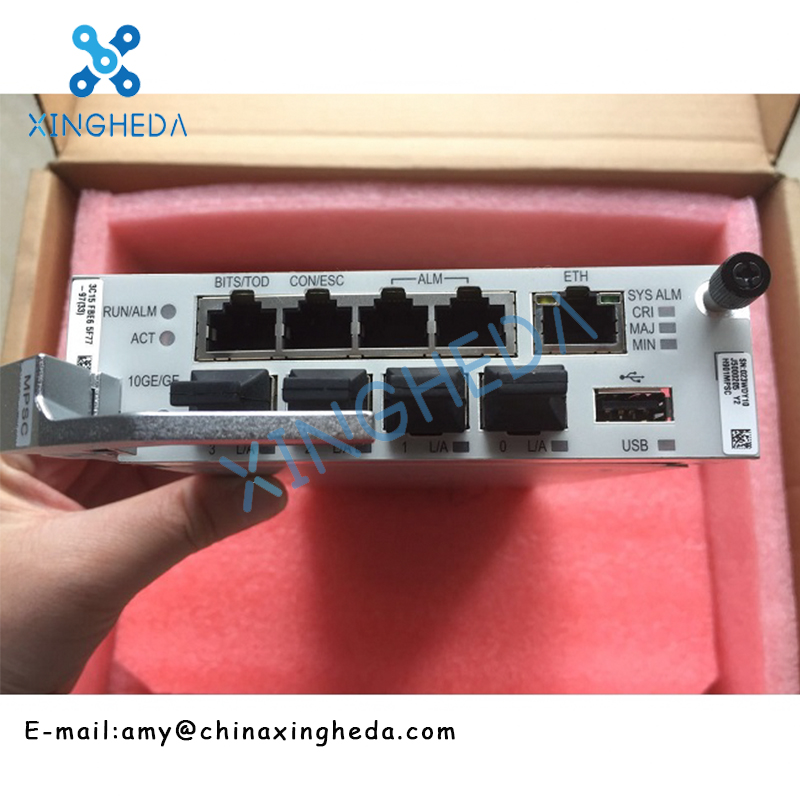

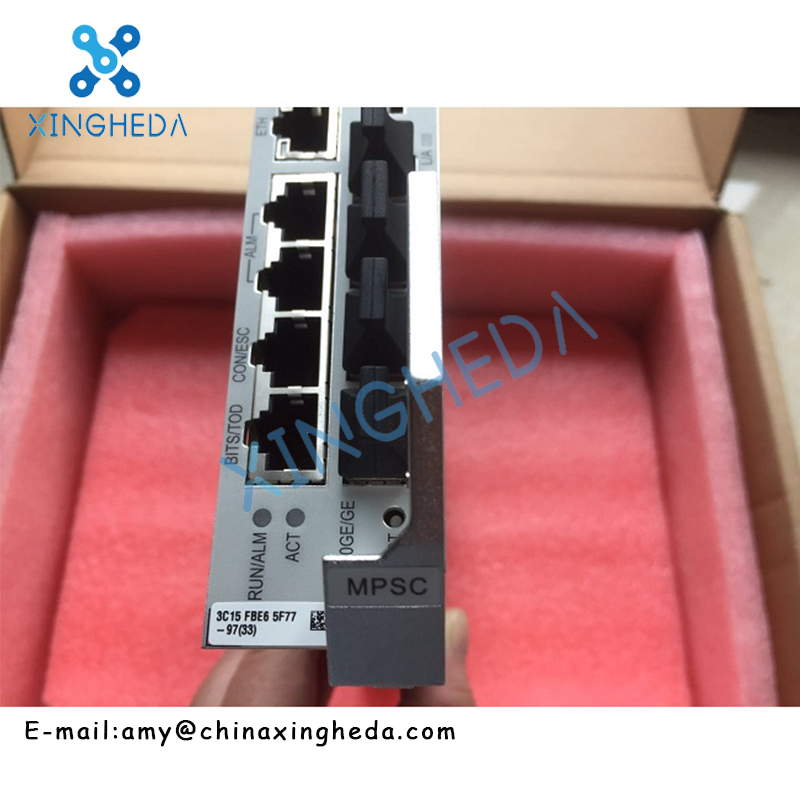

Supports interfaces CON (RJ-45)/ESC (RJ-45), ETH (RJ-45)
Supports Communication Interfaces L/A 0 to L/A 3 (4 x SFP+/SFP 10GE/GE ports)

H901MPSC is a main control card of Huawei SmartAX MA5800-X2 NG OLT; it is the core of system control and service switching and aggregation. MAX access 4096 subscribers, and supports 98816 ARP table.

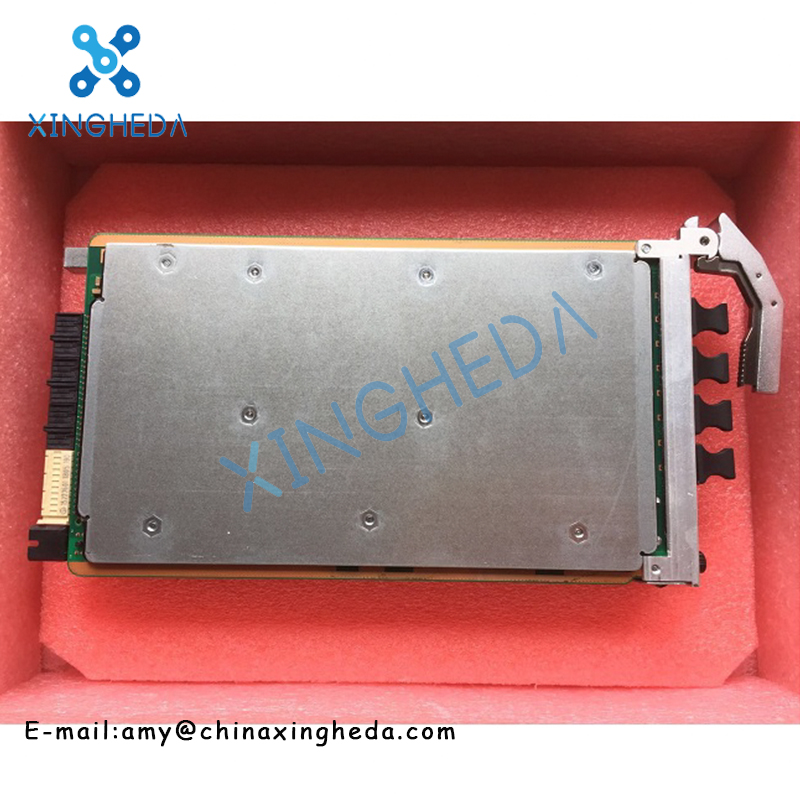

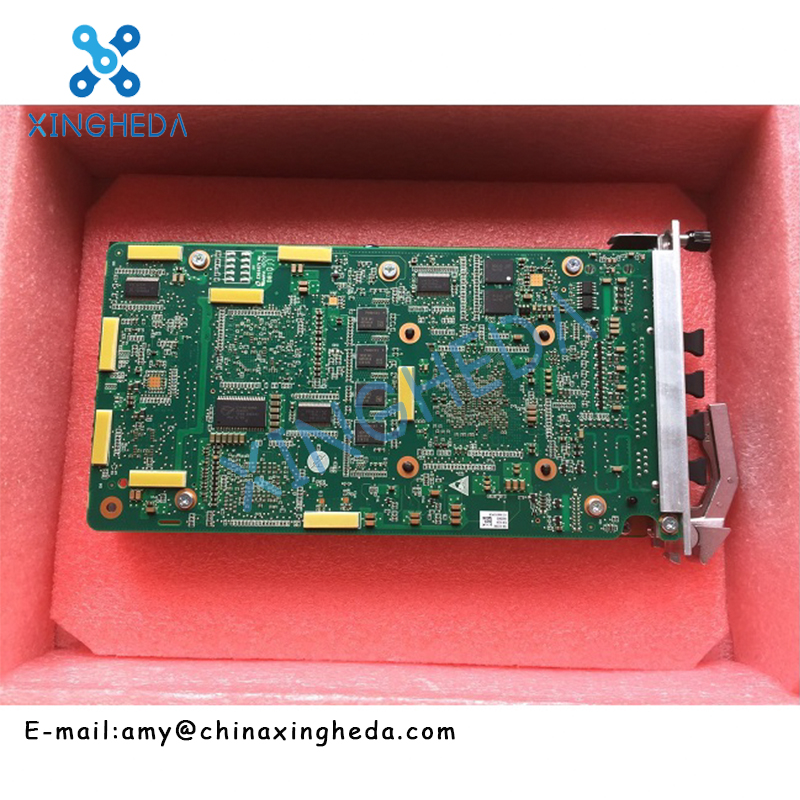

Product Details:
Huawei MPSC H901MPSC 03023WDY MA5800T X2 4-Port 10GE Main Control Board

Huawei MPSC H901MPSC 03023WDY MA5800T X2 4-Port 10GE Main Control Board

Huawei MPSC H901MPSC 03023WDY MA5800T X2 4-Port 10GE Main Control Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
