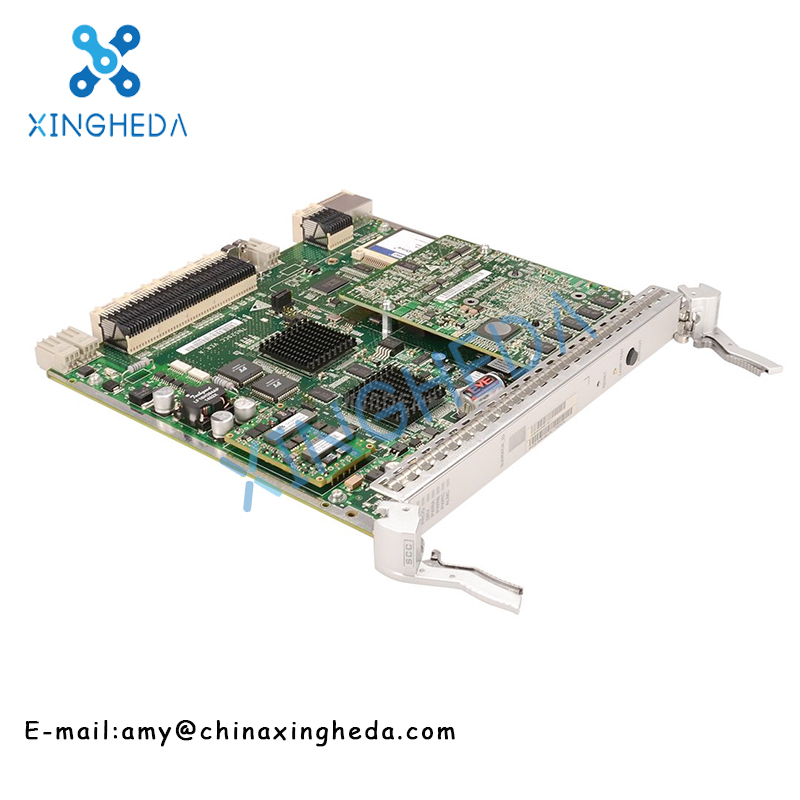

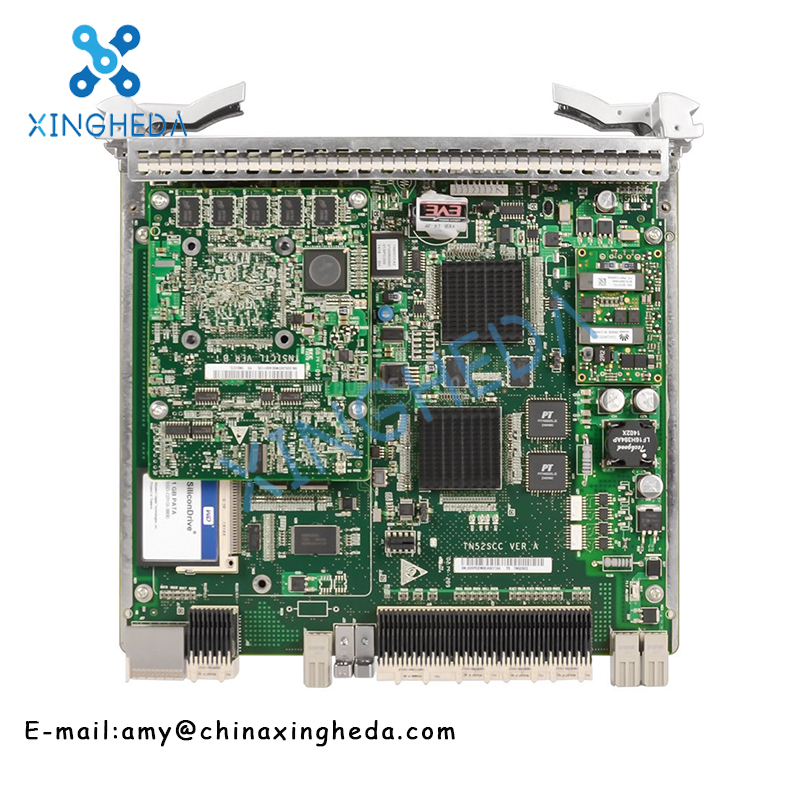

Huawei TN52SCC 03030LNB OSN6800 OSN8800 T32 system control and communication board
Product Description:
OSN6800 OSN8800 T32 system control and communication board.
Can substitute for TN51SCC.
Accomplishes the service grooming, configuration management and alarm output of a subrack.
Supports the backup of the NE data.
Supports the function of the CF card to back up the database.
Supports interconnection and communication between NEs through IP over DCC, OSI over DCC, or HWECC.
Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup.
Supports clock source for the system communications.
Supports subrack cascading.
Supports Optical-layer ASON.
Supports Electrical-layer ASON.
TN52SCC is a system control and communication board, can apply to Huawei OSN6800 and OSN8800 T32. TN52SCC part number is 03030LNB, some other version like TN11, TN16, TN22, TN23, TN51 and TNK2 with different system compatibility and feature supported.
Specifications
| Function and Feature | Description |
| Basic function | - Accomplishes the service grooming, configuration management and alarm output of a subrack.
- Supports the backup of the NE data. When the NE data changes, the real-time database backup function immediately saves the changed configuration data into the storage medium to ensure that no configuration data is lost after the NE is reset (cold) or powered off. This improves the reliability of the NE.
- Supports the function of the CF card to back up the database. The NE data (except NE IP, NE ID, Gateway ID, and Node ID) and the board software are backed up to the CF card. Backing up data to the CF means that you do not need to reconfigure the NE after replacing the SCC.
|
| DCN communication | Supports interconnection and communication between NEs through IP over DCC, OSI over DCC, or HWECC. |
| Active/Standby backup | Supports active/standby backup: There are two SCCs in the system that can provide 1+1 hot backup. If the active board fails, the standby board automatically becomes active. |
| Clock function | Provides clock source for the system communications. |
| Subrack cascading | Supports subrack cascading. The SCC accomplishes different functions based on the mode (master or slave) of the subrack in which it is installed. The SCC in a slave subrack processes the overhead bytes, handles alarms and manages the configuration inside the subrack. The SCC in a master subrack performs the same functions as the SCC in the slave subrack, and also processes overhead bytes and handles the alarms of all its slave subracks. The SCC in the master subrack connects to the network management system (NM). The configuration commands are issued to the SCC of a slave subrack through the SCC in the master subrack. |
| Optical-layer ASON | Supported |
| Electrical-layer ASON | Supported |
Product Details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
