Huawei H901MPLB 03022RWC 10GE MA5800 X7/X15/X17 Main Control Board

Name: Huawei H901MPLB 03022RWC 10GE MA5800 X7X15X17 Main Control Board
Brand: Huawei
Price: 1 USD

China Huawei H901MPLB 03022RWC 10GE MA5800 X7/X15/X17 Main Control Board wholesale

Brand Name : Huawei

Model Number : Huawei MPLB

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : POWER MODULE

Products status : Stock

Product name : Huawei 03022RWC

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

Huawei H901MPLB 03022RWC 10GE MA5800 X7/X15/X17 main control board

Product Description:

The MPLB board is a control board. It is the core of the system control and service switching and aggregation. The MPLB board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband GE/10GE channel. In this manner, the MPLB board configures, manages, and controls the device, and also implements the simple route protocol functions.

Product Specification:

Function
Bandwidth per slot	200Gbit/s (load sharing mode)
MAC address table	262143
Access ONT	17408
Multicast user	17408
Configurable multicast channel	4096
Concurrent multicast channel	4000
IPv4 routing table	65536
IPv6 routing table	16384
Service port	139264
ARP table	66048 (Before the V100R017C10 version) 98816 (V100R017C10 version) 131072 (V100R018C00 and later version)
ACL rule	1042
Maximum Frame Size	2052 bytes.
Environment
Operating temperature	-40°C to +65°C
Power consumption	Static: 62W Maximum: 117 W
Mechanical Specification
Dimensions(mm)	31 (W)x 258.9 (D) x 399.1 (H)
Weight(kg)	2.2

Board	H901HMPLA	H902MPLA	H901MPLB	H901MPSC
Maximum Bandwidth per Slot(load sharing mode)	100 Gbit/s	100 Gbit/s	200 Gbit/s	80 Gbit/s
Upstream transmission or cascading port	4 x 10GE/GE ports	4 x 10GE/GE ports	4 x 10GE/GE ports	4 x 10GE/GE ports
BITS/TOD port	No	No	No	Yes (1 external clock/time input and output)
MAC address table	262143	262143	262143	262143
Access ONT	17408	17408	17408	4096
Number of static programs configurable	4096 (Before the V100R017C00 version) 8192 (V100R017C00 and later versions)	8192	4096 (Before the V100R017C00 version) 8192 (V100R017C00 and later versions)	8192 (V100R017C10 and later versions)
Maximum number of online programs supported	V100R016C00 version: 4000 V100R016C10 version: IPv4: 4000 IPv6: 2000 V100R017C10 and later versions: IPv4: 8000 IPv6: 2000	IPv4: 8000 IPv6: 2000	V100R016C00 version: 4000 V100R016C10 version: IPv4: 4000 IPv6: 2000 V100R017C10 and later versions: IPv4: 8000 IPv6: 2000	V100R017C10 and later versions: IPv4: 8000 IPv6: 2000
ARP table	66048 (Before the V100R017C10 version) 98816 (V100R017C10 version) 131072 (V100R018C00 and later versions)	66048 (V100R017C00 version) 98816 (V100R017C10 version) 131072 (V100R018C00 and later versions)	66048 (Before the V100R017C10 version) 98816 (V100R017C10 version) 131072 (V100R018C00 and later versions)	98816 (V100R017C10 version) 131072 (V100R018C00 and V100R018C10 versions) 32768 (V100R019C00 and later versions)

Product Details:

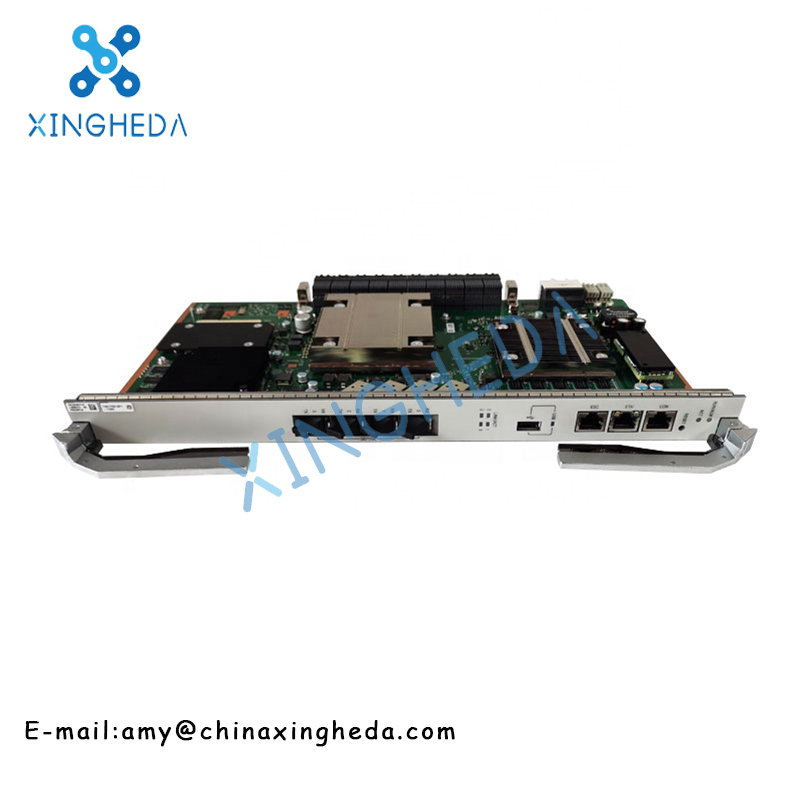

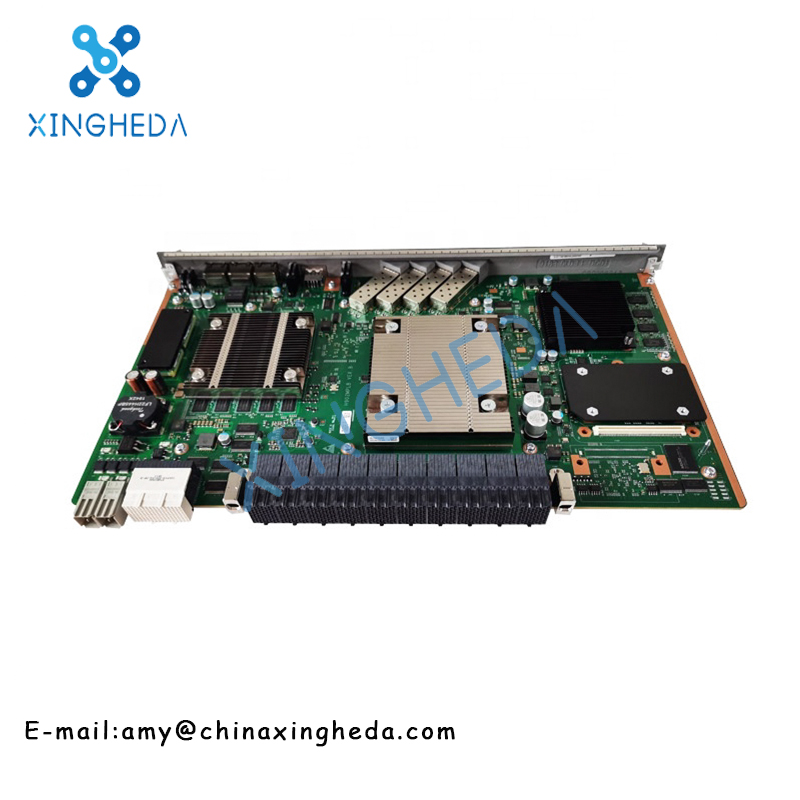

Huawei H901MPLB 03022RWC 10GE MA5800 X7/X15/X17 Main Control Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
Huawei H901MPLB 03022RWC 10GE MA5800 X7/X15/X17 Main Control Board
