HUAWEI CXL4 03055403 SSQ2CXL4(L-4.2,LC) SSQ2CXL412 Master Cross Interface Board

Name: HUAWEI CXL4 03055403 SSQ2CXL4L42LC SSQ2CXL412 Master Cross Interface Board
Brand: HUAWEI
Price: 1 USD

China HUAWEI CXL4 03055403 SSQ2CXL4(L-4.2,LC) SSQ2CXL412 Master Cross Interface Board wholesale

Brand Name : HUAWEI

Model Number : Huawei CXL4

Place of Origin : CHINA

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : Huawei 03055403

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI CXL4 03055403 SSQ2CXL4(L-4.2,LC) SSQ2CXL412 Master Cross Interface Board

Product Description:

Q2CXL4 is a Main Control and Cross-Connect integrated board for Huawei OSN1500, OSN2500, provide STM-4 signals, controls communication, grooms services and clock signals. Part number is 03055402, V1R8, V1R10 version are default mainstream delivery version.

SSQ2CXL4(S-4.1) configure 1 S-4.1 15km SFP module, but eSFP module are changeable to different type as L-4.1, L-4.2 to reach different transmission distance, please contact thunder-link.com sales team if need customized configuration.

Specification:

Feature Code
Board	Feature Code	Type of Optical Interface
SSQ2CXL4	10	S-4.1
SSQ2CXL4	15	S-4.1
Optical Interface Parameter
Parameter	Value
Nominal bit rate	622080 kbit/s
Line code pattern	NRZ
Application code	S-4.1
Transmission distance (km)	2 to 15
Type of fiber	Single-mode LC
Operating wavelength range (nm)	1274 to 1356
Launched optical power range (dBm)	-15 to -8
Receiver sensitivity (dBm)	-28
Minimum overload (dBm)	-8
Minimum extinction ratio (dB)	8.2
Maximum -20 dB spectral width (nm)	-
Minimum side mode suppression ratio (dB)	-
Mechanical Speifications
Dimensions (mm)	25.4 (W) x 220 (D) x 254.1 (H)
Weight (kg)	1.1

Product Details:

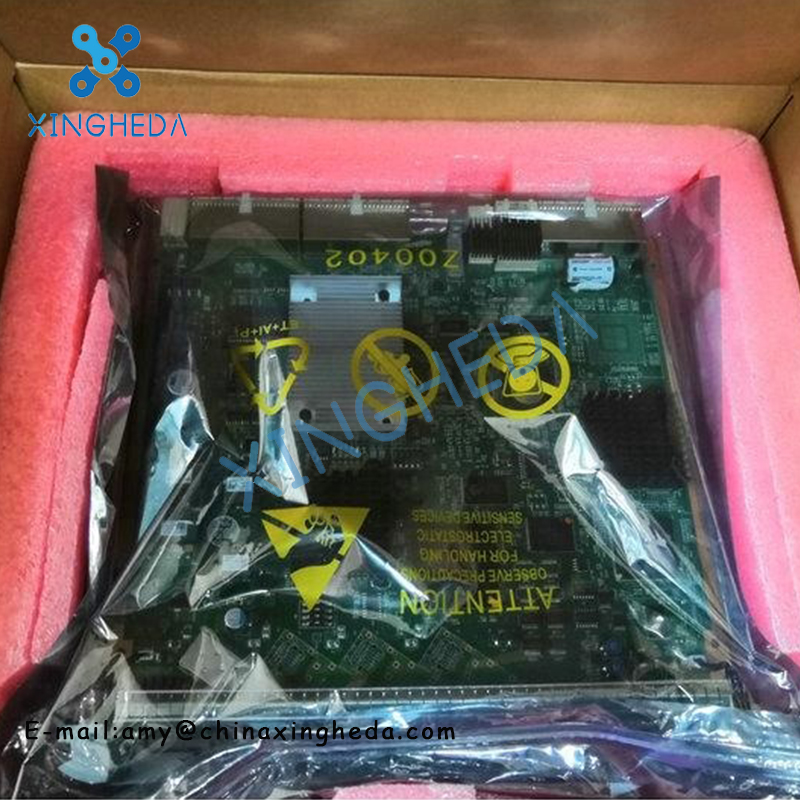

HUAWEI CXL4 03055403 SSQ2CXL4(L-4.2,LC) SSQ2CXL412 Master Cross Interface Board

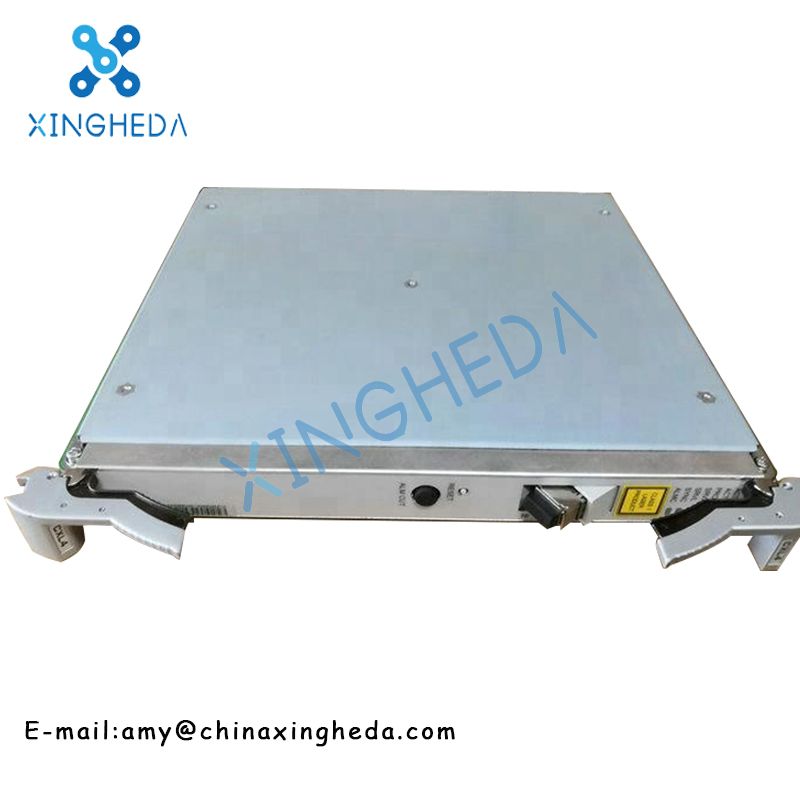

HUAWEI CXL4 03055403 SSQ2CXL4(L-4.2,LC) SSQ2CXL412 Master Cross Interface Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
