HUAWEI SXCSA SSN1SXCSA 03030DKF Super Cross-connect and Synchronous Timing Board
Product Desription:
Huawei OSN3500 Super Cross-connect and Synchronous Timing Board(Without Extension Host).
Higher order cross-connect capacity: 200 Gbit/s.
Lower order cross-connect capacity: 20 Gbit/s.
Access capacity: 155 Gbit/s.
Supports the SNCP protection at the VC-4-4c, VC-4-8c, VC-4-16c, VC-4-64c, VC-4, VC-12, VC-3, and AU-3 levels.
Supports VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenation services.
Supports a maximum of 40 linear MSP protection groups.
Supports a maximum of 12 ring MSP protection groups.
Supports the standard system synchronization clock.
Supports the real-time clock (RTC).
Supports the processing of the S1 byte to realize the clock protection switching.
Supports the extraction, insertion, and management of the SSM and clock ID.
Supports the 1+1 Hot Backup for the Cross-Connect and Timing Units protection schemes.
SXCSA is a Super Cross-Connect board for Huawei OSN3500, provide 200G High order, 20G Low order Cross-Connect capacity and 155G Access capacity. SXCSA have N1 and ND0 version, respectively part number is 03030DFK and 03030KBM.
Specification:
| BOM | Model | Description |
| 03030DKF
| SSN1SXCSA
| Super Cross-connect and Synchronous Timing Board(Without Extension Host)
|
| 03030DKL
| SSN1IXCSA
| Infinite Cross-connect and Synchronous Timing Board |
| Valid Slot |
| OSN 3500: The SSN1SXCSA can be installed in slots 9 and 10 in the subrack. |
| Mechanical Specifications |
| Dimensions (mm) | 40.0 (W) x 235.2 (D) x 261.4 (H) |
| Weight(kg) | 2.2 |
Product details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
Pr
Product Tags:
|
|

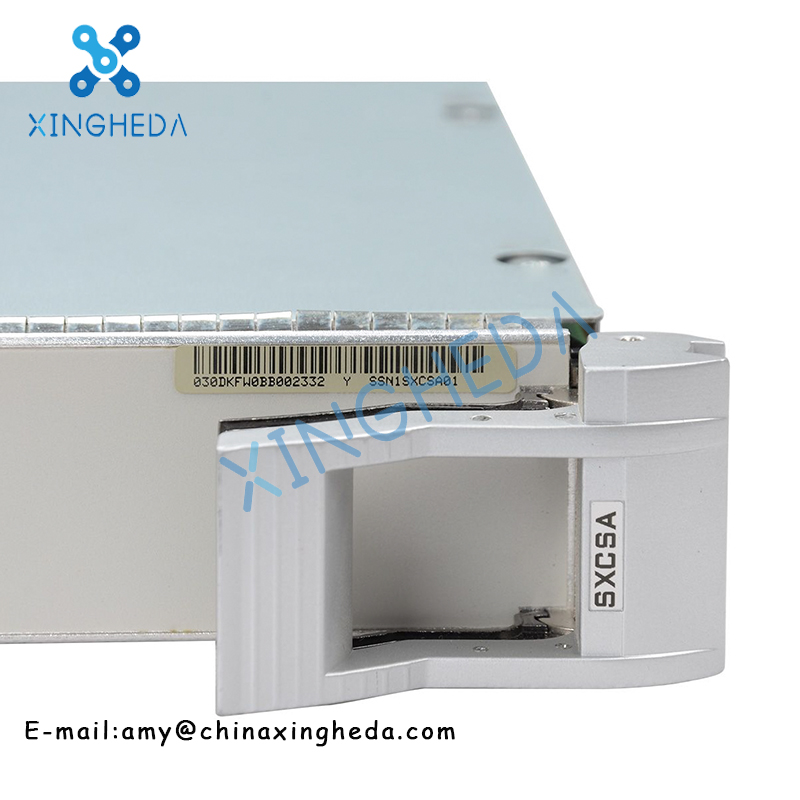

HUAWEI SXCSA SSN1SXCSA 03030DKF Super Cross-Connect And Synchronous Timing Board Images
|
