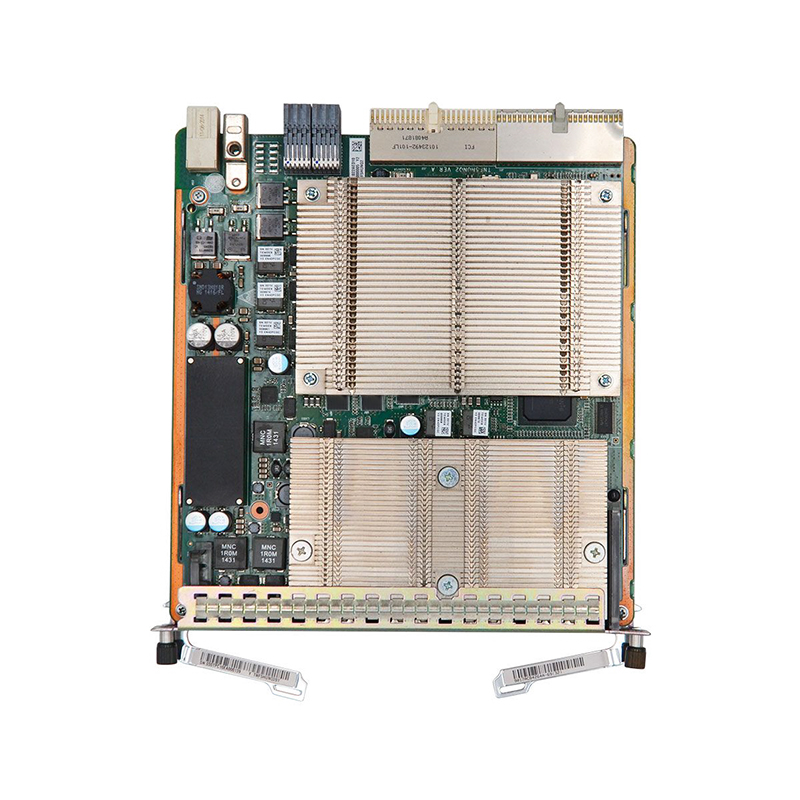

HUAWEI HUNQ2 TNF5HUNQ201 030TPC10 Huawei OSN 1800V 4-ports 10G Processing Board
Product Desription:
The available hardware version of the HUNQ2 is TNF5.
Support hybrid transmission of optical transport network OTN, SDH, and packet services, and functions such as
Layer 2 switching, OTN ports, and SDH overhead processing.
The HUNQ2 board is a single-width board (requiring one slot). HUNQ2 can be housed in any of slots 8-14 in the chassis.
Implements service grooming when working with cross-connect boards.32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e.
Supports ITU-T G.694.1-compliant dense wavelength division multiplexing (DWDM) specifications.
Supports optical tunable transponders, which can tune optical signals output on the WDM side within the range of 80 wavelengths in C-band with the channel spacing of 50 GHz.
Supports inloops and outloops at WDM-side ports.
Supports inloops and outloops on ODU0, ODU1, and ODUflex channels.
Supports the PRBS test function on WDM and system sides.
Supports ITU-T G.709-compliant forward error correction (FEC) encoding.
Supports ESC communication.
Supports ITU-T G.975.1-compliant advanced forward error correction (AFEC)-2 encoding.
The HUNQ2 board is a 4 x 10G Universal Line Service Processing Board applied to Huawei OSN 1800V and supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, VC-12, VC-3, VC4, and packet services with the total bandwidth not exceeding 40 Gbit/s. It can also receive and transmit only one or two of these services. The HUNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.
Specification:
| Applicable System |
| 1800 V-TNF5UXCM-V100R003C05 1800 V-TNF5UXCME-V100R005C20 |
| Valid Slot |
| The HUNQ2 board is a single-width board (requiring one slot). HUNQ2 can be housed in any of slots 8-14 in the chassis. |
| Specifications for Optical Modules(WDM-Side) |
XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km specifications
XFP-10G-(1529.17nm to 1560.20nm)(DWDM,100GHz,Fixed)-SMF-40km specifications
XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km Specifications
XFP-10G-(1471nm to 1611nm)(CWDM)-SMF-70km Specifications
XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz,Tunable)-SMF-80km Specifications
XFP-10G-850nm-MMF-0.3km Specifications
XFP-10G-1310nm-SMF-10km
XFP-10G-1550nm-SMF-40km Specifications
XFP-10G-1550nm-SMF-80km Specifications |
| Mechanical Specifications |
| Typical Power Consumption (W) | 86.3 |
| Maximum Power Consumptiona (W) | 91.2 |
| Dimensions(mm) | 19.8 x 193.8 x 205.9 |
| Weight(kg) | 1.52 |
Product details:
If you are interested, please let us know the specific model. We will provide the best service and the best price!
