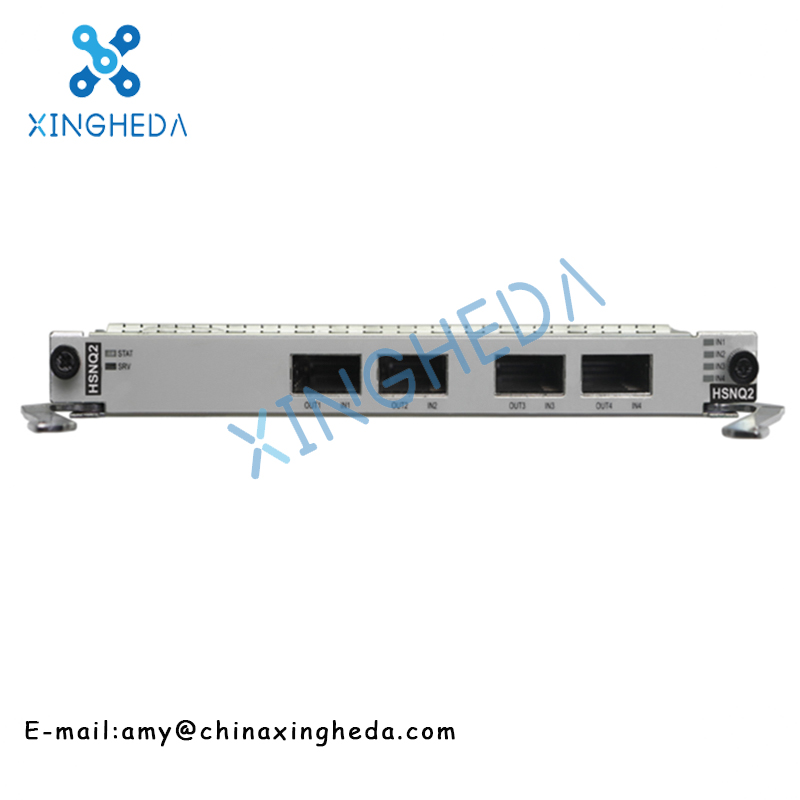

HUAWEI HSNQ2 TNF5HSNQ2 AAF06583 Huawei OSN1800V 4 Port 10G Universal Line Board

32 x ODU0/16 x ODU1/4 x ODU2/32 x ODUflex<->4 x OTU2 (OTU is the abbreviated form of optical channel transport unit.)

4 x ODU2e<->4 x OTU2e

(Only for pure OTN signals) 32 x ODU0<->16 x ODU1<->4 x ODU2<->4 x OTU2

8 x STM-16<->8 x ODU1<->2 x ODU2<->2 x OTU2

2 x STM-64<->2 x ODU2<->2 x OTU2

NOTE:

For 1800 II Enhanced, a TNF6HSNQ2 board supports at most 5 Gbit/s bandwidth of SDH services

OTN services: Supported (ODU0/ODU1/ODUflex)

SDH services: SDH clock synchronization is supported when SDH virtual ports are configured.

Implements service grooming when working with cross-connect boards.

32 x ODU0/16 x ODU1/32 x ODUflex/4 x ODU2/4 x ODU2e

Supports inloops and outloops at WDM-side ports.

Supports inloops and outloops on ODU0, ODU1, and ODUflex channels.

Monitors parameters such as the bias current, operating temperature, and optical power of a laser.

Monitors OTN alarms and performance events.

Monitors bit interleaved parity 8 (BIP8) bytes (Bursty mode) to help locate line failures.

Processes section overheads of STM-16/STM-64 signals.

Transparently transmits and terminates path overheads.

Supports the setting and querying of J0 (to be received), J1, and C2 bytes.

Provides transparent DCCs and orderwire byte channels.

TNF5HSNQ2:

SNCP protection: supported

Linear MSP: supported

Two-fiber bidirectional MS ring protection: supported

XFP-10G-1310nm-SMF-10km

XFP-10G-1550nm-SMF-40km

XFP-10G-1550nm-SMF-80km

XFP-10G-850nm-MMF-0.3km

XFP-10G-(1529.17nm to 1560.20nm)(DWDM,100GHz,Fixed)-SMF-40km

XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km

XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km

1800 V-TNF5UXCM/TNF5XCH-V100R005C10

1800 V-TNF5UXCME-V100R005C20
