HUAWEI TTA TNF6TTA 02311QMM OSN1800 10 Port Multi Rate Service Board

Name: HUAWEI TTA TNF6TTA 02311QMM OSN1800 10 Port Multi Rate Service Board
Brand: HUAWEI
Price: 100 USD

China HUAWEI TTA TNF6TTA 02311QMM OSN1800 10 Port Multi Rate Service Board wholesale

Brand Name : HUAWEI

Model Number : TNF6TTA

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 02311QMM

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

HUAWEI TTA TNF6TTA 02311QMM Huawei OSN1800 10-port Multi-rate Service Board

Product Desription:

TNF6TTA 10-port multi-rate service processing board

Applied to Huawei OSN 1800 II Enhanced, OSN 1800V

Supports client 1+1 protection

Supports ODUk SNCP

Supports Tributary SNCP

Supports the LPT

Supports ESC communication

Supports Electrical-layer ASON

TNF6TTA is a 10-port multi-rate service processing board applied to Huawei OSN 1800 II Enhanced, OSN 1800V. As a tributary board, the TTA board can accept a maximum of 40 Gbit/s client services. Supports OTN interfaces, and ESC communication.

Specification:

Specifications
Basic functions	Port Working Mode		TTA boards support the following port working modes: TTA Scenario 1: ODU0 non-convergence mode(Any->ODU0) TTA Scenario 2: ODU1 non-convergence mode(Any->ODU1) TTA scenario 3: ODU2 non-convergence mode (Any->ODU2(e)) TTA Scenario 4: ODUflex non-convergence mode (Any->ODUflex) TTA Scenario 5: ODU1_ODU0 mode (OTU1->ODU1->ODU0) TTA scenario 6: ODU1 convergence mode (n*Any->ODU1)
	Cross-connect functionality		The total bandwidth is 40 Gbit/s. It cross-connects 20 channels of ODU0 signals, 10 channels of ODU1/ODUflex signals or 4 channels of ODU2/ODU2e signals through the backplane bus and cross-connect board.
Maximum frame length (MFL) for a port			Ranges from 1518 bytes to 9600 bytes. NOTE: The board provides the maximum frame length (MFL) for a port function only when receiving 10GE LAN services on the client side. when Port Mapping is set to Bit Transparent Mapping (11.1G), Maximum Frame Length is unavailable on the NMS.
Client-Side Pluggable Optical Module
SFP+ -10G(with CDR)-1310nm-SMF-10km SFP+ -10G(with CDR)-1550nm-SMF-40km SFP+ -8.5G to 10.5G-850nm-MMF-0.3km SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-40km-I SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-40km-I SFP+ -10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km SFP+ -6.144G-850nm-MMF-0.12km-I SFP+ -6.144G-1310nm-SMF-10km-I eSFP-155M-1310nm-MMF-2km eSFP-155M-1310nm-SMF-15km eSFP-155M-1310nm-SMF-40km eSFP-155M-1550nm-SMF-80km eSFP-622M-1310nm-SMF-15km eSFP-622M-1310nm-SMF-40km eSFP-622M-1550nm-SMF-80km eSFP-2.125G-850nm-MMF-0.5km-I eSFP-1.25G-1310nm-SMF-10km eSFP-1.25G-1310nm-SMF-40km eSFP-1.25G-1550nm-SMF-80km-01 eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-10km eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-10km eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-40km eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-40km eSFP-2.5G-1310nm-SMF-2km eSFP-2.5G-1310nm-SMF-15km eSFP-2.5G-1310nm-SMF-40km eSFP-2.5G-1550nm-SMF-80km SFP+ -10G(with CDR)-(1471nm to 1611nm)(CWDM)-SMF-70km-I eSFP-3G-1310nm-SMF-10km eSFP-4.25G-850nm-MMF-0.3km-I eSFP-4.25G-1310nm-SMF-10km eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-40km eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I SFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-40km-I SFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-40km-I SFP+ -0.125G to 11.3G-1310nm-SMF-10km SFP-100Base-T-autonegotiation-100 m-RJ45 SFP-1000Base-T-autonegotiation-100 m-RJ45
Version description of the TTA board
Board			Product Applicable-System Control Board-Initial Board Version Supported by System Control Board
TNF6TTA			1800 V-TNF5UXCM/TNF5UXCME/TNZ5UXCMS/TNF5XCH-V100R006C20 1800 V-TNZ8XCH-V100R009C00SPC700 1800 II Enhanced-TNZ1UXCL-V100R007C10 1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600
Mechanical Specifications
Typical Power Consumption(W)		53.5
Maximum Power Consumption(W)		60.5
Dimension (W x H x D, mm)		193.8 x 19.8 x 205.9
Weight(kg)		0.8 kg

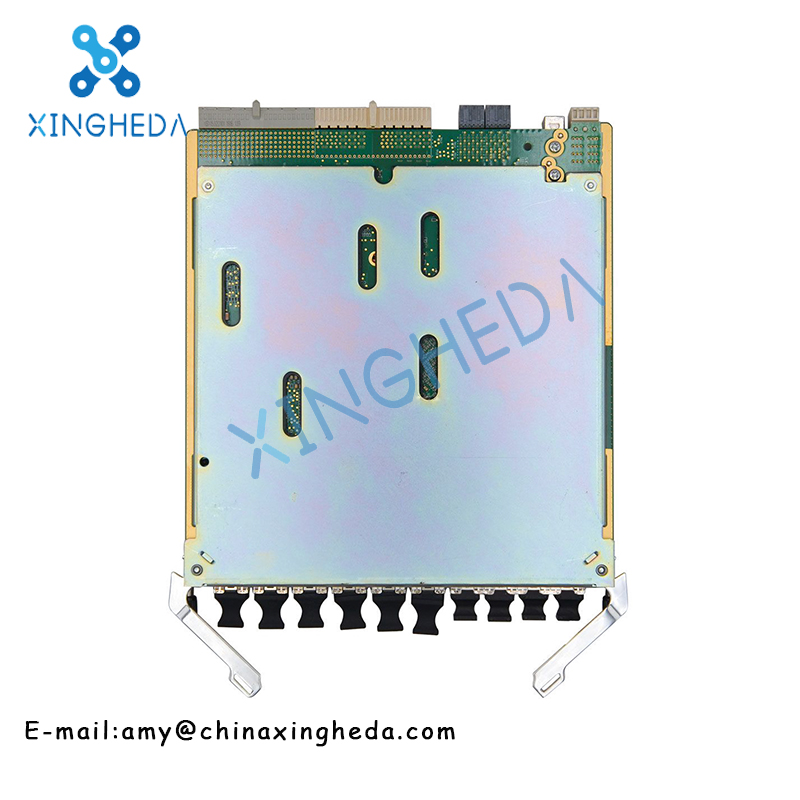

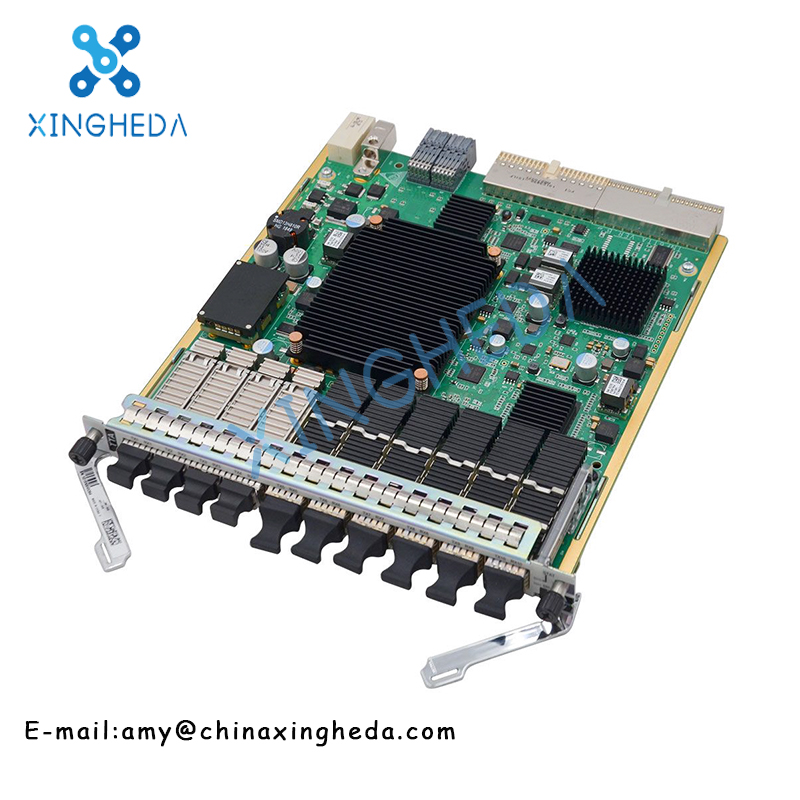

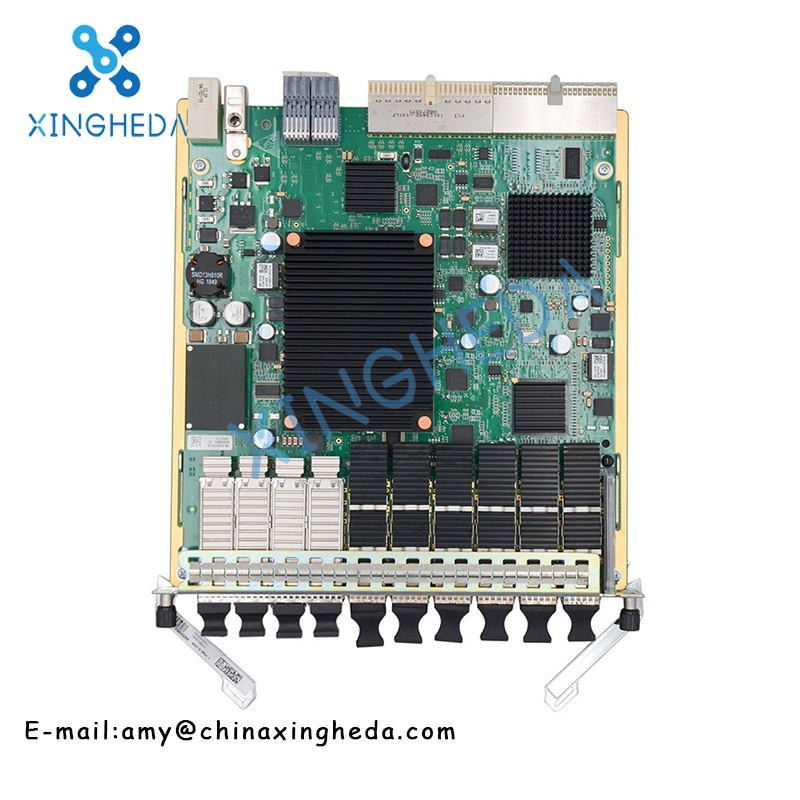

Product details:

HUAWEI TTA TNF6TTA 02311QMM OSN1800 10 Port Multi Rate Service Board

If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI TTA TNF6TTA 02311QMM OSN1800 10 Port Multi Rate Service Board
