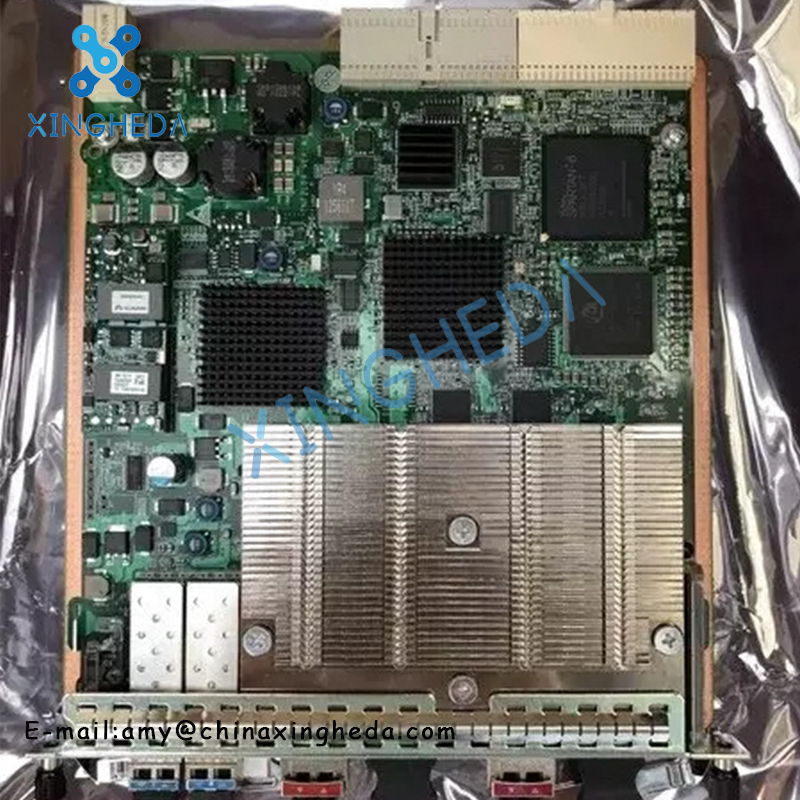

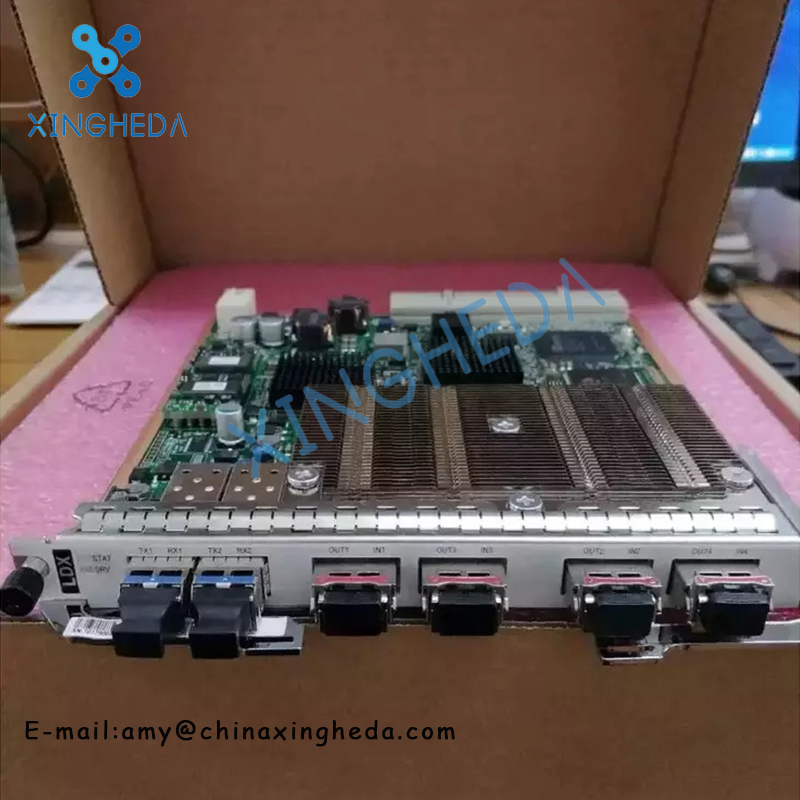

| Specifications (in OTU mode) |
Basic functions
| Working modes of the board and ports | 2*AP1 ODU2 mode: 2 x 10 Gbit/s client-side service <-> 2 x OTU2/OTU2e |
| Cross-connect functionality | Supports intra-board ODU2 cross-connections |
| Cross-connection configuration mode | When intra-board 1+1 protection is configured for the board, set this parameter to Automatic. When ODUk SNCP protection or any-rate service cross-connection is configured for the board, set this parameter to Manual. |
| Non-intrusive monitoring function | Supported on WDM-side ports (IN1/OUT1 to IN4/OUT4) of F1LDX (STND)/F2LDX boards |
| Specifications (in regeneration mode) |
| Basic functions | Working modes of boards and their ports | F1LDX (REG) boards do not support the setting of their working modes or their ports' working modes. They are used at electrical regeneration sites to electrically regenerate optical signals. F1LDX (STND)/F2LDX boards working in regeneration mode do not support the setting of their ports' working modes. |
| Cross-connect functionality | Not supported |
| Regeneration rate | OTU2: 10.71 Gbit/s for OTN services OTU2e: 11.1 Gbit/s for OTN services |
| Client-Side Pluggable Optical Module |
| SFP+ -6.144G-850nm-MMF-0.12km-I SFP+ -6.144G-1310nm-SMF-10km-I SFP+ -10G(with CDR)-(1471nm to 1611nm)(CWDM)-SMF-70km-I SFP+ -10G(with CDR)-1310nm-SMF-10km SFP+ -10G(with CDR)-1550nm-SMF-10km-I SFP+ -10G(with CDR)-1550nm-SMF-40km SFP+ -8.5G to 10.5G-850nm-MMF-0.3km SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-40km-I SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-40km-I |
| WDM-Side Pluggable Optical Module |
| XFP-10G-(1529.17nm to 1560.20nm)(DWDM,100GHz,Fixed)-SMF-40km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-40km XFP-10G-(1471nm to 1611nm)(CWDM)-SMF-70km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz,Tunable)-SMF-80km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km-E XFP-10G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-80km XFP-10G-TX1330/RX1270nm(BIDI)-SMF-40km XFP-10G-TX1270/RX1330nm(BIDI)-SMF-40km XFP-10G-1310nm-SMF-10kma XFP-10G-1550nm-SMF-40km XFP-10G-1550nm-SMF-80km XFP-10G-(1529.17nm to 1560.61nm)(DWDM,50GHz,Tunable)-SMF-80km |
| Version description of the LDX board |
| Board | Product Applicable-System Control Board-Initial Board Version Supported by System Control Board |
| TNF1LDX | 1800 I&II Compact-TNF1SCC-V100R003C01 1800 I&II Compact-TNF3SCC-V100R005C20 1800 V-TNF5UXCM/TNF5UXCME/TNF5XCH-V100R003C05 1800 V-TNZ5UXCMS-V100R006C10 1800 V-TNZ8XCH-V100R009C00SPC700 1800 II Enhanced-TNZ1UXCL-V100R007C10 1800 II Enhanced-TNZ2UXCL-V100R008C00SPC600 |
| Mechanical Specifications |
| Typical Power Consumption(W) | 31 |
| Maximum Power Consumption(W) | 32 |
| Dimension (W x H x D, mm) | 193.8 x 19.8 x 205.9 |
| Weight(kg) | 1 kg |
