HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board

  • 1
  • 2
  • 3

Brand Name : HUAWEI

Model Number : TN55TSC

Place of Origin : CHINA

MOQ : 1pc

Price : $100-$200

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500pcs/week

Delivery Time : 3-7 work days

Packaging Details : 1pc into a spare inner foam carton and pack with exteral wooden carton

Type : SDH/MSTP/PTN

Products status : Stock

Product name : HUAWEI 03024GDQ

Shipping term : DHL,Fedex,UPS,EMS,AIR

Condition : Brand New

Warranty : Six month

Contact Now

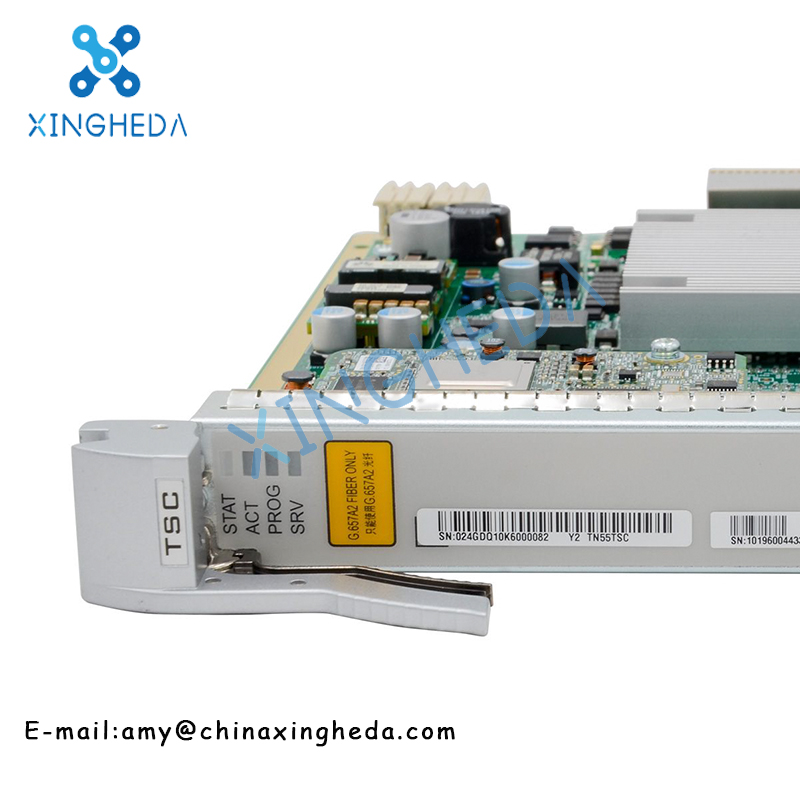

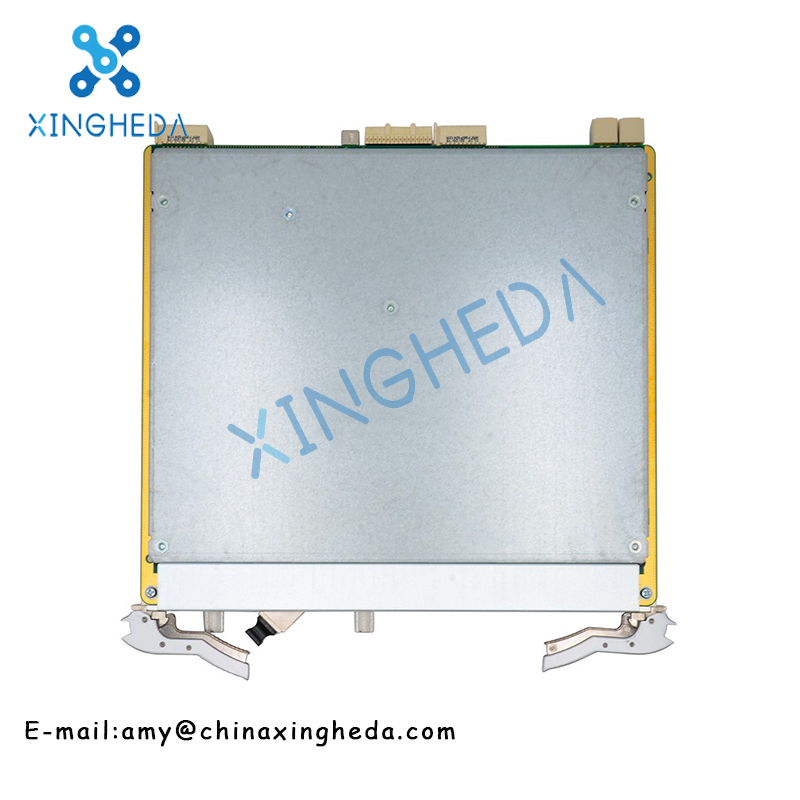

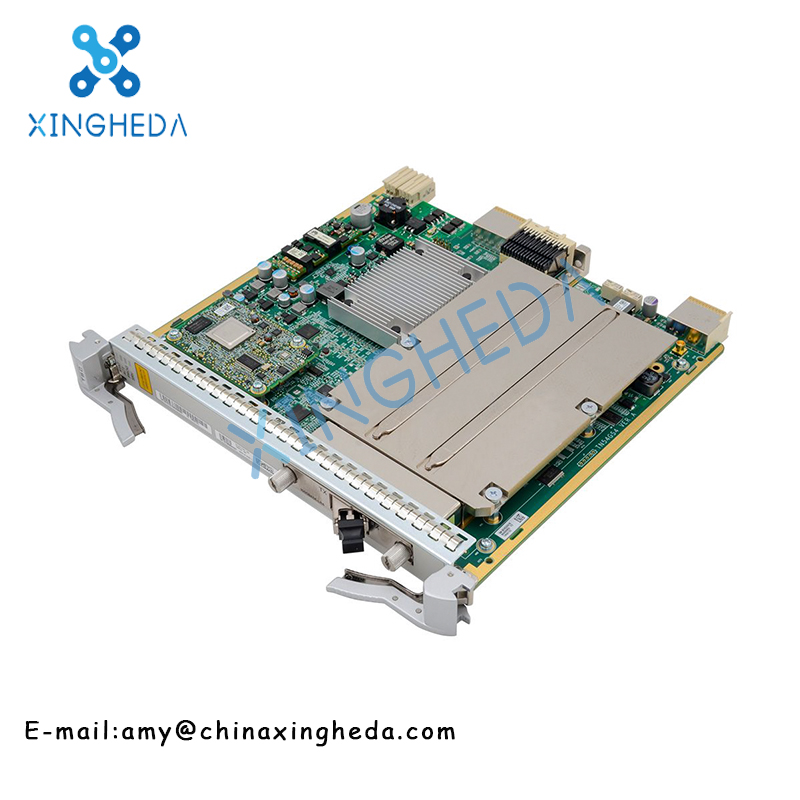

HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board

Product Desription:

100G Tributary Service Processing Board, apply to Huawei OSN 8800.

When the client-side service type is 100GE, the board supports the PM function.

When the client-side service type is OTU4, the board supports the PM and TCM functions, PM and TCM non-intrusive monitoring functions.

Supports the cross-connection of one channel of ODU4 signals between the TSC and the cross-connect board.

Supports the OTN frame format and overhead processing by referring to the ITU-T G.709.

Supports the SM function.

Supported ESC function when the client side service type is OTU4.

Supports the PRBS function on the client side, only when the client side service type is OTU4.

Supports forward error correction (FEC) on the client side that complies with ITU-T G.709, only when the service type is OTU4.

Supports the remote monitoring (RMON) of Ethernet services.

Supports the ALS function on the client side when client services are non-OTN services.

Supported only when the client-side service type is 100GE.

Supports synchronous Ethernet transparent transmission instead of synchronous Ethernet processing when receiving 100GE/OTU4 services on the client side.

Supports Electrical-layer ASON.

Supports client 1+1 protection.

Supports ODUk SNCP.

Supports tributary SNCP protection.

Supports the tributary SNCP protection, only when the client side service type is OTU4.

Supports Inloop/Outloop on the Client side of Loopback.

As a type of tributary board, the TSC board converts between one channel of 100GE/OTU4 optical signals and one channel of ODU4 electrical signals through cross-connection.

The TSC board is mainly used to achieve cross-connection at the electrical layer.

Specification:

Valid Slot

Enhanced OptiX OSN 8800 T64 subrack: IU1-IU8, IU11-IU42, IU45-IU68

Enhanced OptiX OSN 8800 T32 subrack: IU1-IU8, IU12-IU27, IU29-IU36

OptiX OSN 8800 T16 subrack: IU1-IU8, IU11-IU18

Client-side pluggable optical module specifications (100G BASE LR4)
Parameter Value
Optical Module Type 100G BASE-LR4-10 km-CFP
Line code format NRZ
Optical source type SLM
Target transmission distance 10 km (6.2 mi.)
Transmitter parameter specifications at point S
Signaling Speed per Lane(Gbit/s) 25.78125
Signaling Speed Accuracy(ppm) -100 to 100
Total Average Launch Power (Min)(dBm) 1.
Total Average Launch Power (Max)(dBm) 10.5
Transmit OMA per Lane (Min)(dBm) -1.3
Transmit OMA per Lane (Max)(dBm) 4.5
Average Launch Power per Lane (Min)(dBm) -4.3
Average Launch Power per Lane (Max)(dBm) 4.5
Optical Extinction Ratio (Min)(dB) 4
Side Mode Suppression Ratio (Min)(dB) 30
Receiver parameter specifications at point R
Receiver type PIN
Signaling Speed per Lane(Gbit/s) 25.78125
Signaling Speed Accuracy(ppm) -100 to 100
Average Receiver Power per Lane (Min)(dBm) -10.6
Average Receiver Power per Lane (Max)(dBm) 4.5
Minimum receiver overload (OMA) per Lane(dBm) 4.5
Receiver Sensitivity (OMA) per Lane(dBm) -8.6
Maximum reflectance(dB) -26
Mechanical Specifications
Dimensions(mm) 50.8(W) x 220(D) x 264.6(H)
Weight(kg) 3


Product details:

HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board

HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board

HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board


If you are interested, please let us know the specific model. We will provide the best service and the best price!
HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board
HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board
HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board
HUAWEI TSC TN55TSC 03024GDQ HUAWEI OSN8800 100G Tributary Service Processing Board
